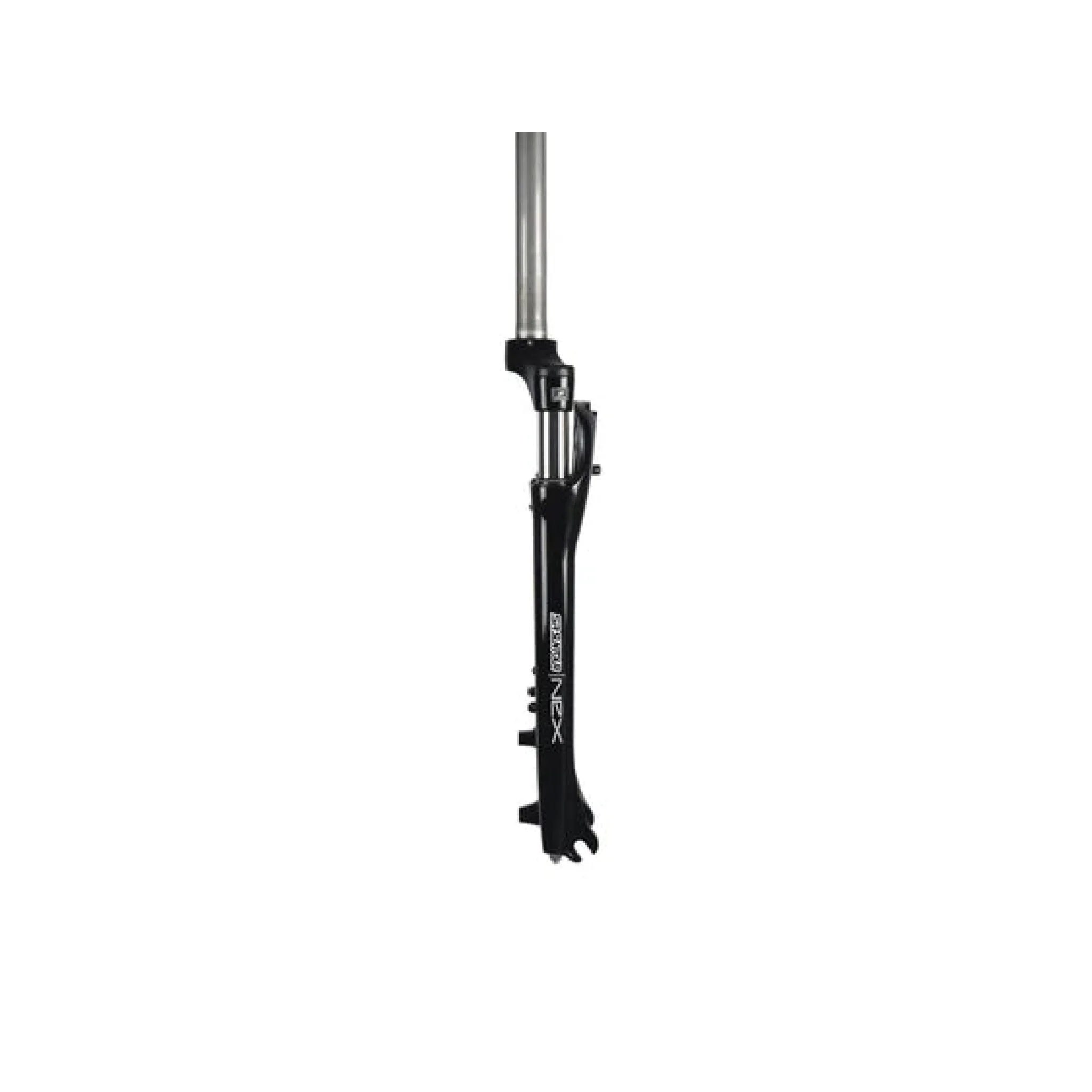

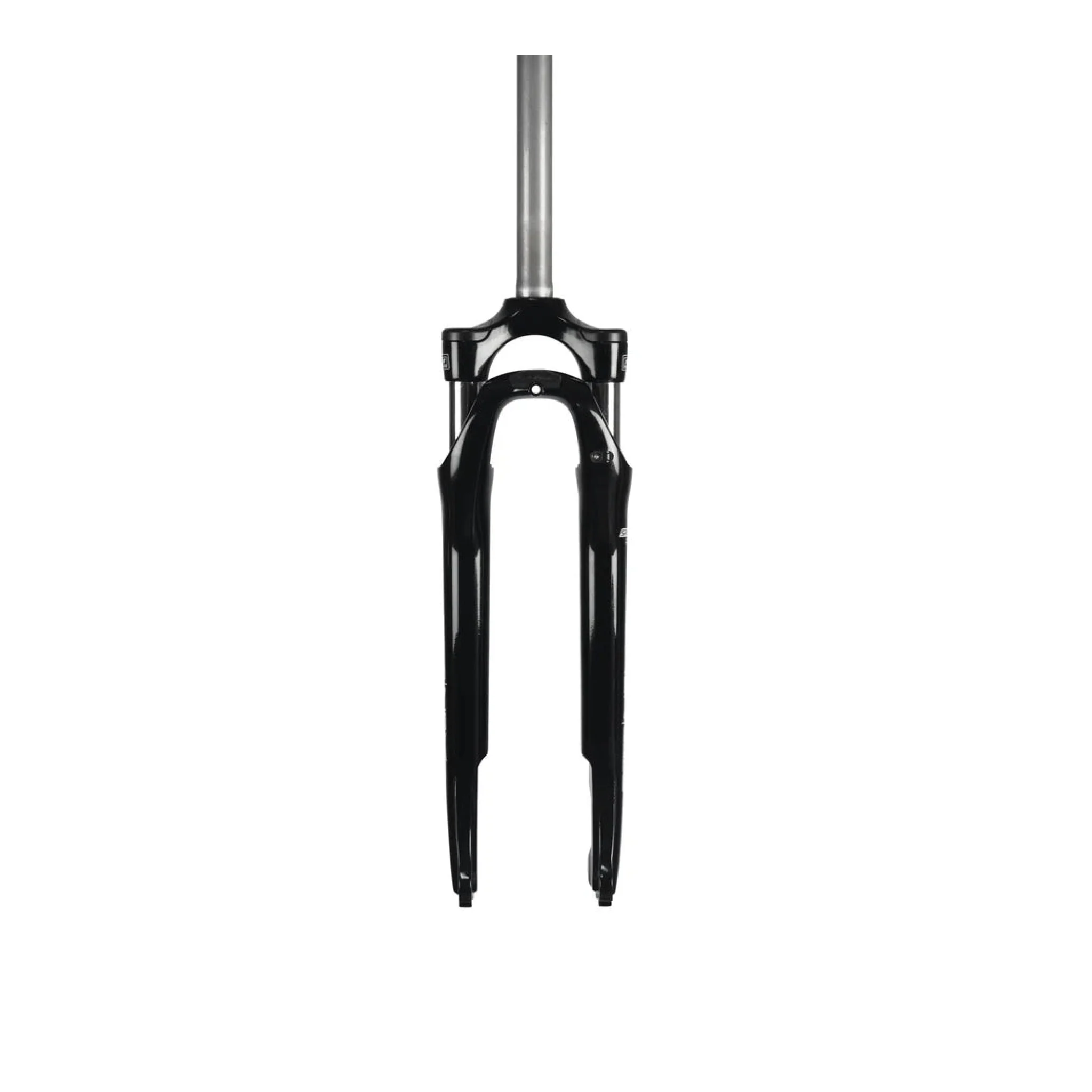

SR Suntour NEX-E25 E-Bike Forks, 27.5 1-1/8 Threadless, Black - Step Through
SR Suntour NEX E-25 is a Hybrid E-bike fork designed for 700c, 27.5 wheels and E-bike compatibility. A durable and reliable light duty E-Bike fork for leisure city use. Hydraulic lockout equipped. 9mm open drop out design will accommodate quick release wheels
- 63mm travel
- Hydraulic lockout
- Coil spring adjust for preload
- Aluminum crown and lightweight steerer
- 30mm stanchion tubes
- 9mm drop out
- Lower aluminum monocoque design
- Direct post mount disc design - 160mm
- Fender mounts
- Fully serviceable
Specs:
Steerer tube diameter
1-1/8" / 1.5"to1-1/8"
Travel
50/63/75
Right Side
NLO
Left Side
COIL w/ Preload adjuster
Crown/Steerer
AC4C
Stanchion DIA. (Material)
30mm
Pitch
116mm
Bottom Case Material
Al Alloy
Brake Mount (Max Rotor DIA.)
Postmount 160mm Direct / V-brake
Steerer tube
1-1/8" (TS), STKM / (OP) 1.5“to 1-1/8" tapered (CTS) STKM
Weight
starting from 2420g
Stanchion tube finish
STKM, Cr-plating
Axle (Option)
ø15-100 15QLC / 9-100mm Dropout (Learn more)
Hub Dynamo electric cable guide
Yes / option
Suggested Category
$49.00
Original: $139.99
-65%SR Suntour NEX-E25 E-Bike Forks, 27.5 1-1/8 Threadless, Black - Step Through—
$139.99
$49.00More Images
